Frame-Aufhangung-Seitlicher stander

Frame-Aufhangung-Seitlicher stander

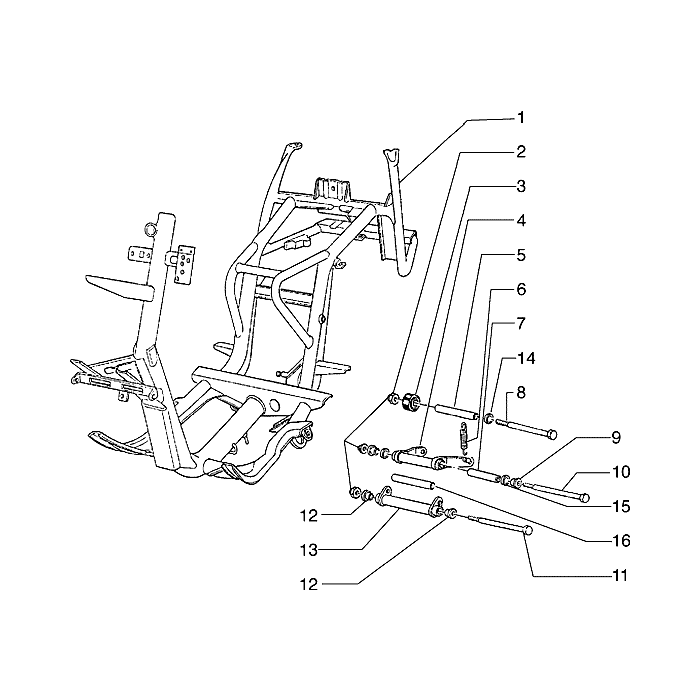

Technical drawing products

Product Name (Sku)

Qty

3. Silent block Piaggio original engine sub frame 43x62x16 will fit fly 4t, runner 180cc 2t, sco piaggio 4t-2v, typhoon 125cc 2727785 (SKU: 31721)

7. (SKU: 100393396) Special order

8. Engine sub frame Piaggio original bolt m10x215 will fit fly, gts 250cc, gts super 300cc, liberty 4t rst, lx fl, lxv, primavera, sportcity one, sprint, vespa S 271779 (SKU: 42476)

9. Bearing bush Piaggio original sub-frame will fit runner 180cc 2t 273773 (SKU: 70275)

9. Bearing bush Piaggio original sub-frame will fit runner 180cc 2t 273773 (SKU: 70275)

10. Bolt Piaggio original engine sub frame m10x205mm will fit zip sp, fly 4t, mojito, nrg, sr factory, zip2000 271807 (SKU: 31642)

11. Bolt Piaggio original engine sub frame m10x245mm will fit zip sp, centro 4t, fly 4t, liberty rst, nrg, sportcity one, zip2000 563977 (SKU: 31643)

14. (SKU: 100377824) Special order

15. O-seal Piaggio original front fork will fit liberty 125cc, liberty 150cc, runner 125cc, runner 180cc, zip 273774 (SKU: 73270)

16. Bush Piaggio original engine sub frame euro-2/4 10x215mm will fit fly 4t, runner 180cc, zip 4t cm067802 (SKU: 41570)
