carburateur bing zundapp 278-25 i0 280-75 i0

carburateur bing zundapp 278-25 i0 280-75 i0

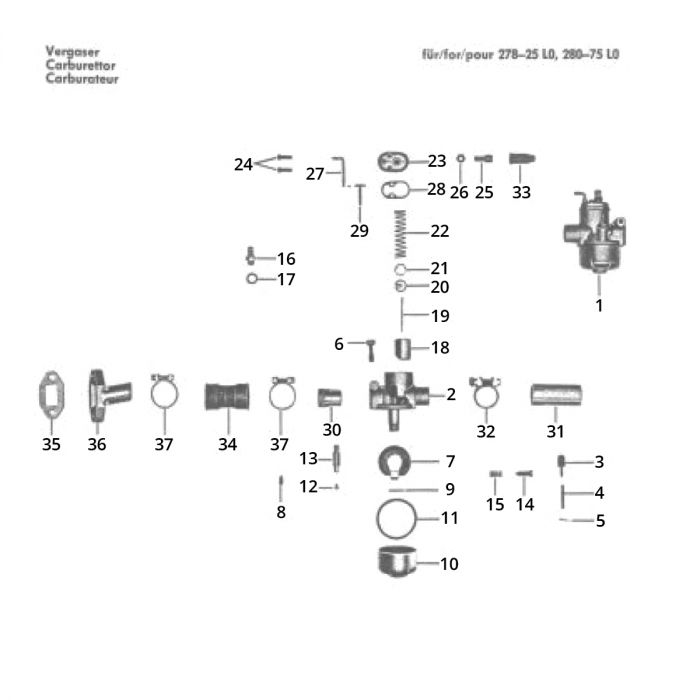

Technical drawing products

Product Name (Sku)

Qty

1. Carburator Bing original 15mm will fit puch maxi 1/15/46a (SKU: 31720)

1. Carburator 15mm will fit puch maxi (SKU: 31067)

6. Bolt Bing carb clamp 12-15mm 140-522-05 (SKU: 92700)

7. Floater Bing 10-15mm 35-217 (SKU: 93960)

10. Floater chamber Bing 19mm 30-550 (SKU: 93927)

11. Gasket carb chamber round Bing 10-17mm 65-452 (SKU: 93935)

12. Main jet small 3mm 68 (SKU: 93368)

12. Main jet small 3mm 70 (SKU: 93370)

12. Main jet small 3mm 72 (SKU: 93372)

13. Main jet tube DMP 10-17mm 45-152 (SKU: 93900)

14. Adjustment screw Bing stationary 10-15mm 40-525 (SKU: 93815)

15. Adjustm screw spring Bing stationary 12mm will fit maxi 60-140 (SKU: 92250)

16. Banjo Bing carburator fuel tube 10-15mm 34-020-01 (SKU: 92180)

17. Gasket set bing 10-12-14mm (SKU: 123506)

18. Throttle slide Bing ot 12-15mm 22-180-24-07 (SKU: 92357)

19. Throttle needle Bing 12-15mm (SKU: 92024)

20. Throttle needle clip Bing 12-17mm 157-210-06 (SKU: 92330)

21. Spring Bing plate throttle slide 10-15mm (SKU: 92490)

22. Throttle slidespring Bing 12-15mm 160-330-06 (SKU: 92494)

23. Throttle slide cover Bing 12-15mm 20-980 (SKU: 92230)

24. Bolt Bing throttle slide cover 10-17mm (SKU: 92185)

28. Gasket throttle slide cover Bing 12-15mm (SKU: 92240)

29. Choke slide Bing 12-15mm (SKU: 92350)

32. Tube clamp w2 stainless steel 16-27mm 10pcs (SKU: 123157)

33. Cable Dellorto rubber carburator (SKU: 103661)

34. Rubber intake carb-air filter short 10-15mm will fit zundapp (SKU: 18010)

35. Inlet gasket fast will fit kreidler, zundapp 4v-5v (SKU: 19190)

36. Manifold intake model bing 12-15mm will fit zundapp (SKU: 20150)
